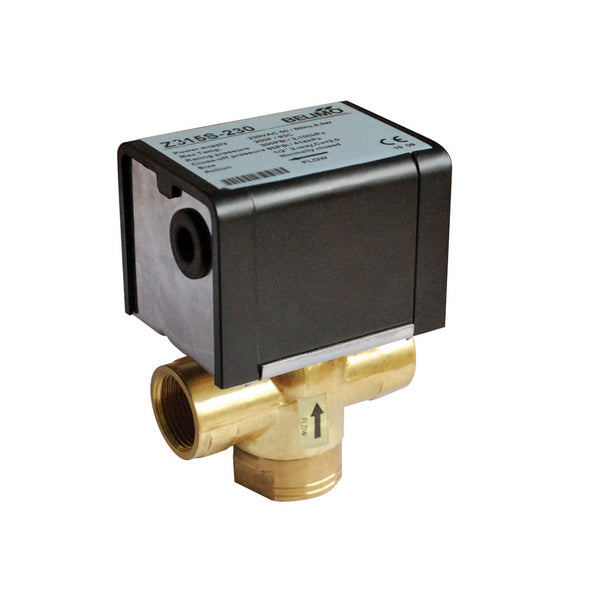

Z320S-230
Z320S-230
Fan Coil Unit (FCU), 3/4", 3-way, Internal thread, kvs 2.6 m³/h
- For open and closed cold and warm water systems
- For fan coil and VAV boxes in heating, ventilation and air-conditioning systems
- Deenergized closed (NC)
- Flow temperature : 0...93°C [32...199°F]
Delivery Lead Time: 1-2 weeks upon order confirmation
RM331.00
Pickup available at Anzen Business Park Warehouse
Usually ready in 5+ days
Specifications
| Valve specifications | |
|---|---|
| Pattern | 3-way |
| Kvs | 2.6 m³/h |
| Fluid | Water, water with glycol up to max. 50% vol. |
| Fluid temperature | 0...93°C [32...199°F] |
| Fluid temperature note | (non-freezing) |
| Close-off pressure | 344 kPa |
| Pipe connection | Internal thread |
| Actuator specifications | |
| Voltage AC/DC | AC 230 V |
| Power consumption (running) | 6.5 W |
| Power Consumption For Wire Sizing | 7 VA |
| Connection Supply Control | Cable 1 m, 2x 0.75 mm² |
| Control type | Open/close |
