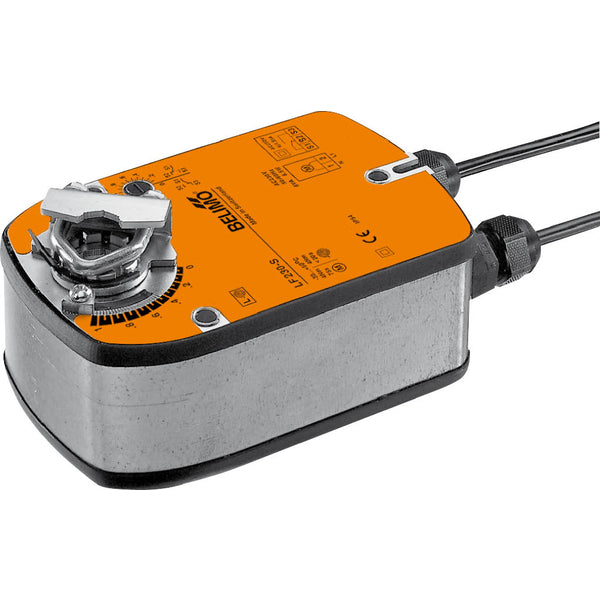

LF230-S
LF230-S

LF230-S

LF230-S

Damper-actuator fail-safe for adjusting air dampers in technical building installations

  • Air damper size up to approx. 0.8 m²
  • Torque motor 4Nm
  • Nominal voltage AC 230V
  • 1-wire control open/close
  • With integrated auxiliary switch feedback
  • Running time motor: 40...75s
  • Running time spring: Approx. 20s

Delivery Lead Time: 1-2 weeks upon order confirmation
    RM895.00

    Pickup available at Anzen Business Park Warehouse

    Usually ready in 5+ days

    LF230-S

    Anzen Business Park Warehouse

    Pickup available, usually ready in 5+ days

    Anzen Business Park, Jalan 4/37 A, Kawasan Industri Bukit Maluri, 52100 Kuala Lumpur, Wilayah Persekutuan Kuala Lumpur
    Jalan 4/37 A, Kawasan Industri Bukit Maluri
    52100 Kuala Lumpur KUL
    Malaysia
    Voltage AC/DC AC 100...240 V
    Power consumption (running) 3.5 W
    Power consumption (holding) 2 W
    Power Consumption For Wire Sizing 6.5 VA
    Auxiliary switches 1x SPDT
    Connection Supply Control Cable 1 m, 2x 0.75 mm²
    Connection Auxilary Switch Cable 1 m, 3x 0.75 mm²
    Torque 4 Nm
    Control type Open/close
    Direction Of Motion Motor selectable by mounting L/R
    Direction of rotation (fail-safe) Selectable by mounting L/R
    Manual override No
    Angle of rotation 95°
    Running time (motor) 75 s / 90°
    Running time (fail-safe) <20 s
    Mechanical interface Universal shaft clamp 8...16 mm
    Protection category IP54
    Ambient Temperature -30...50°C [-22...122°F]
