Multical ® 603 & Ultraflow 44

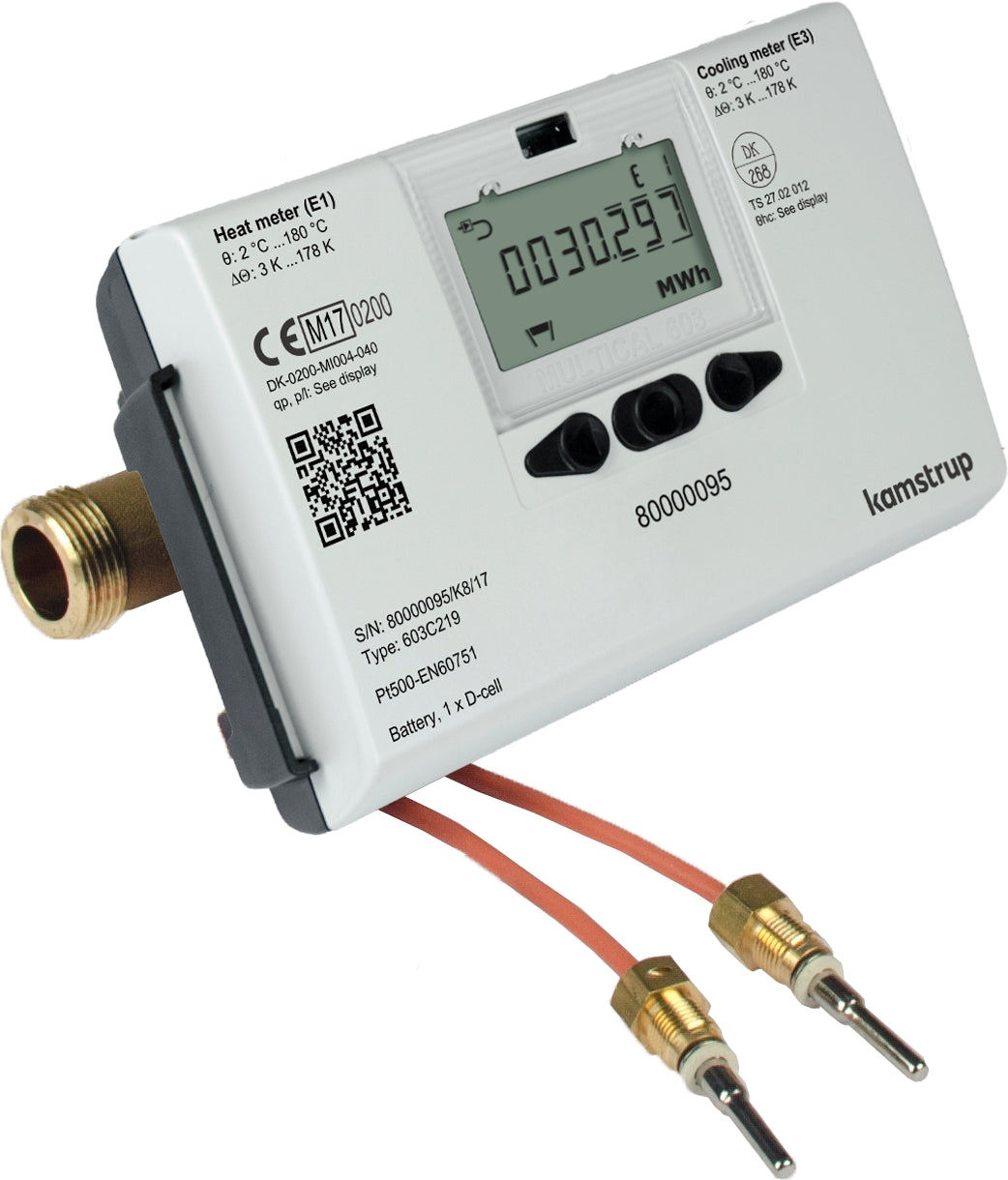

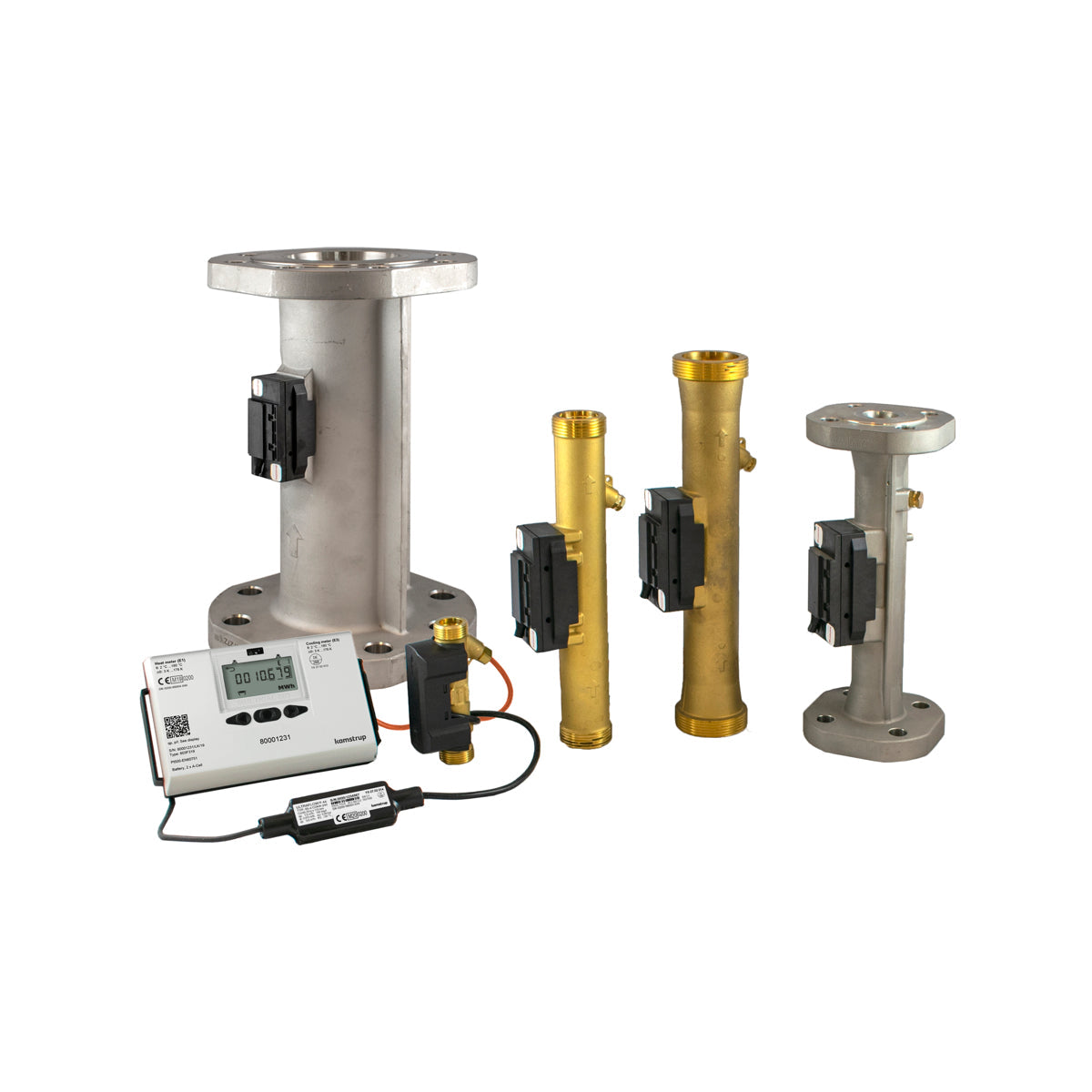

MULTICAL ® 603 cooling meter (PT500) with standard optical data output, power supply (230V/24V), paired PT500 (2-wire) sensor with 10m cable, thermal wells and integrated ultrasonic flow sensor ULTRAFLOW 44 with 10 m signal cable

• Size range from DN20 to DN125 with nominal flow from 0.6m3/hr to 100m3/hr
• Configurable via front keys
• 8 Alphanumeric LCD Display
• Cooling energy displayed in kWh, MWh, GJ or Gcal
• Availability of communication modules Bacnet / Modbus / Lonworks and etc
• Flexibility of power supply module (Battery, 24VAC and 230VAC)
• Fully programmable data logger to save minute, hourly, daily, monthly and yearly value
• Comply to Standard EN1434
• Temperature range: 2°C...180 °C
• Temperature of medium: 2°C...130 °C
• Pressure range: PN16 and PN25
• Accuracy:

-Multical 603 Calculator: Ec = ± 0.5 %

-Ultraflow: Ef = ± 2 %

-Temperature sensor set: Et = ± 0.5 %

Delivery Lead Time: 8-10 weeks upon order confirmation
