NM230A

NM230A

RM571.00
Skip to product information
NM230A
NM230A

NM230A

NM230A

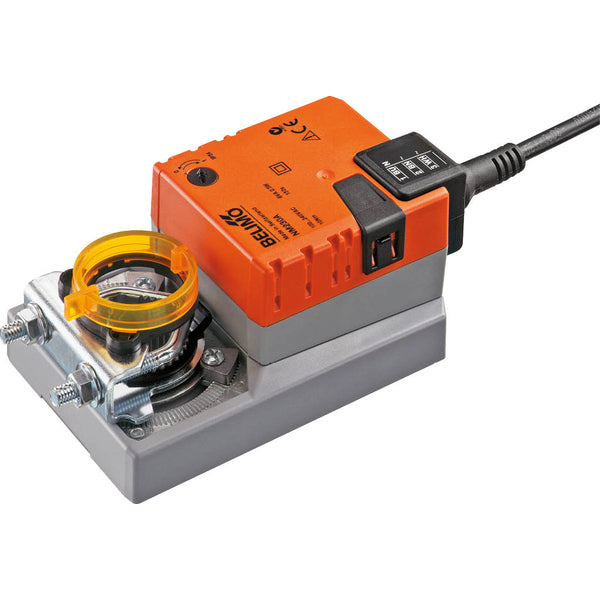

Damper actuator for adjusting dampers in technical building installations

  • Air damper size up to approx. 2 m²
  • Torque motor 10Nm
  • Nominal voltage 230V
  • Control open/close, 3-point
  • Without integrated auxiliary switch
  • Running time: 150s

Delivery Lead Time: 1-2 weeks upon order confirmation
    RM571.00

    Pickup available at Anzen Business Park Warehouse

    Usually ready in 5+ days

    NM230A

    Anzen Business Park Warehouse

    Pickup available, usually ready in 5+ days

    Anzen Business Park, Jalan 4/37 A, Kawasan Industri Bukit Maluri, 52100 Kuala Lumpur, Wilayah Persekutuan Kuala Lumpur
    Jalan 4/37 A, Kawasan Industri Bukit Maluri
    52100 Kuala Lumpur KUL
    Malaysia
    Voltage AC/DC AC 100...240 V
    Power consumption (running) 2.5 W
    Power consumption (holding) 0.6 W
    Power Consumption For Wire Sizing 5.5 VA
    Connection Supply Control Cable 1 m, 3x 0.75 mm²
    Torque 10 Nm
    Control type Open/close
    3-point
    Direction Of Motion Motor selectable with switch 0 (ccw rotation) / 1 (cw rotation)
    Manual override With push-button, can be locked
    Angle of rotation 95°
    Running time (motor) 150 s / 90°
    Mechanical interface Universal shaft clamp 8...26.7 mm
    Protection category IP54
    Degree Of Protection NEMA NEMA 2
    Enclosure Type UL Enclosure Type 2
    Ambient Temperature -30...50°C [-22...122°F]
