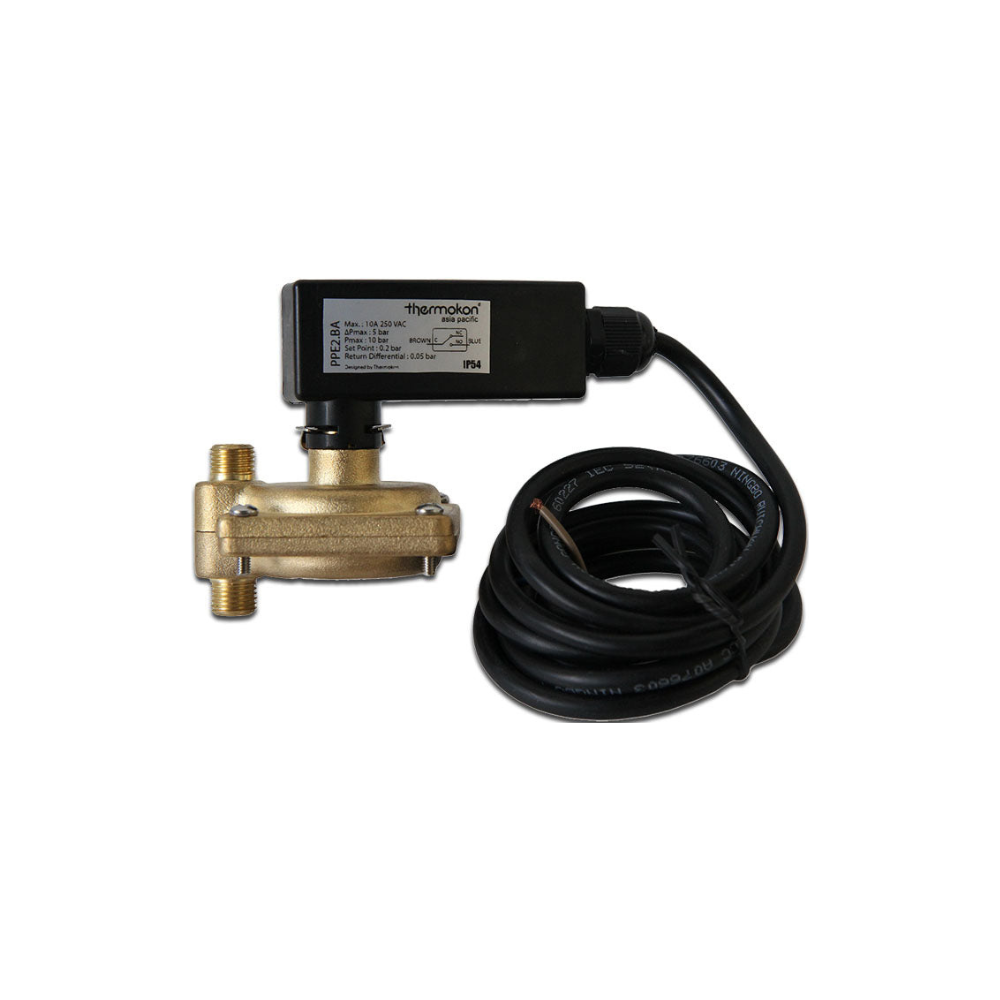

PPE2 Series - Water Differential Pressure Switch

PPE2.BA

Water Differential Pressure Switch PPE2 Series widely used as the water flow controls in water / air cooled chillers and as monitor in water bump and filter of plate heat exchanger, tube heat exchanger and shell heat exchanger.

Max differential pressure 2.5bar
Sensor output: SPDT contact (NO/NC)
Repeatability: ±2%
Max static pressure: Max 20bar
Medium temperature range: 20°C...93°C
Relay rating: 250VAC

Delivery Lead Time: 6-8 weeks upon order confirmation

RM355.00 RM378.00

Switching Set Point 0.2bar 0.25bar 0.3bar 0.4bar 0.05bar

Pickup available at Anzen Business Park Warehouse

Usually ready in 5+ days

Measured	Water Differential Pressure
Sensor Characteristics	Passive
Sensor Output	SPDT micro-switch (NO/ NC)
Repeatability	±1%
Max. Pressure Difference	Max. 5bar
Max. Static Pressure	Max. 20bar
Medium Temperature Range	-20...+93°C
