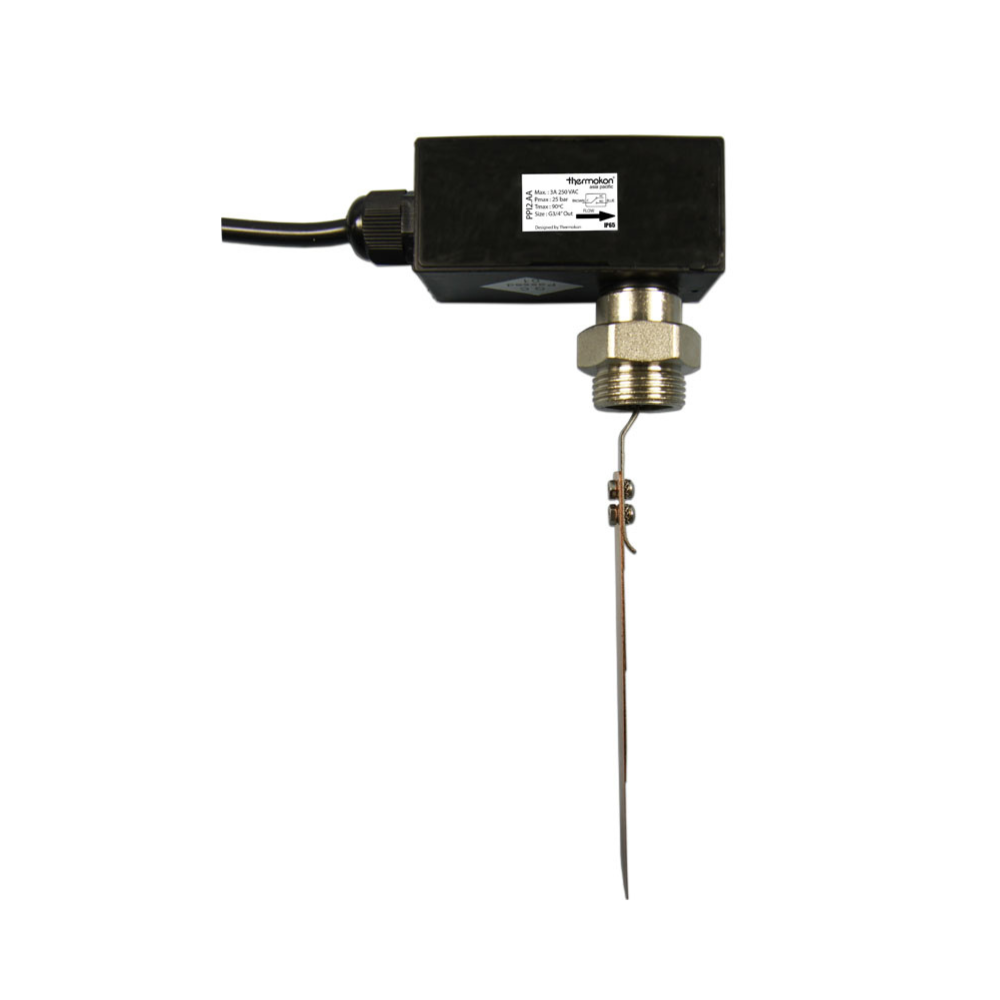

PPI2 Series - Water Flow Paddle Switch

PPI2.AA

Water Flow Paddle Switch is is widely used as water flow controls in water / air cooled chillers and as monitor in water bump, mechanical equipment, compressor, refrigeration and air conditioning industry.

Measured: Flow

Sensor Characteristics: Passive

Sensor Outputs: SPDT micro-switch (NO/ NC)

Pressure Lost: 0.01bar at max. flow

Max. Over Pressure: Max. 25bar

Medium Temperature Range: -30⁰C…+110⁰C

Measuring Range(s): Optional paddles, from DN32 -DN150

RM288.00 RM306.00

Pickup available at Anzen Business Park Warehouse

Usually ready in 5+ days

Measured	Flow
Sensor Characteristics	Passive
Sensor Output	SPDT micro-switch (NO/ NC)
Pressure Lost	0.01bar at max. flow
Max. Over Pressure	Max. 25bar
Medium Temperature Range	-20°C...+90°C
