SM24A-SR

SM24A-SR

RM849.00
Skip to product information
SM24A-SR
SM24A-SR

SM24A-SR

SM24A-SR

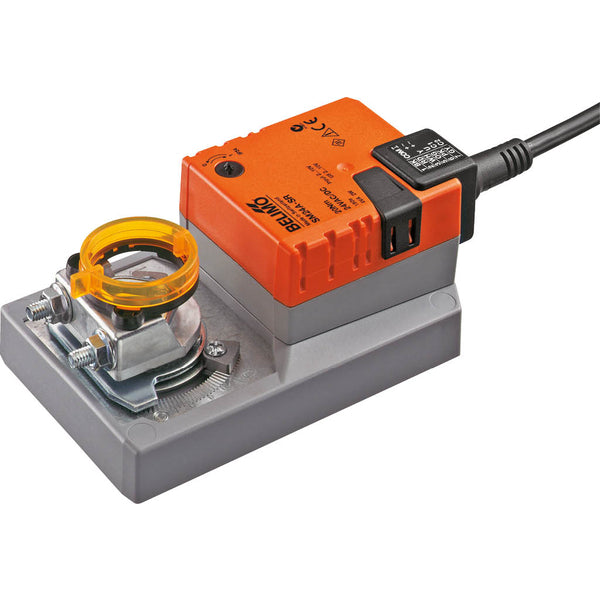

Damper actuator for adjusting dampers in technical building installations

  • Air damper size up to approx. 4m_
  • Torque motor 20Nm
  • Nominal voltage AC/DC 24V-  -
  • Control Modulating 2...10V DC
  • Position feedback 2...10V DC
  • Running time: 150s-
Delivery Lead Time: 1-2 weeks upon order confirmation
    RM849.00

    Pickup available at Anzen Business Park Warehouse

    Usually ready in 5+ days

    SM24A-SR

    Anzen Business Park Warehouse

    Pickup available, usually ready in 5+ days

    Anzen Business Park, Jalan 4/37 A, Kawasan Industri Bukit Maluri, 52100 Kuala Lumpur, Wilayah Persekutuan Kuala Lumpur
    Jalan 4/37 A, Kawasan Industri Bukit Maluri
    52100 Kuala Lumpur KUL
    Malaysia
    Voltage AC/DC AC/DC 24 V
    Power consumption (running) 2 W
    Power consumption (holding) 0.4 W
    Power Consumption For Wire Sizing 4 VA
    Connection Supply Control Cable 1 m, 4x 0.75 mm²
    Torque 20 Nm
    Control type DC 2...10 V
    Direction Of Motion Motor selectable with switch 0/1
    Manual override With push-button, can be locked
    Angle of rotation 95°
    Running time (motor) 150 s / 90°
    Mechanical interface Universal shaft clamp reversible 10...20 mm
    Protection category IP54
    Degree Of Protection NEMA NEMA 2
    Enclosure Type UL Enclosure Type 2
    Ambient Temperature -30...50°C [-22...122°F]
