TF230
TF230

TF230

TF230

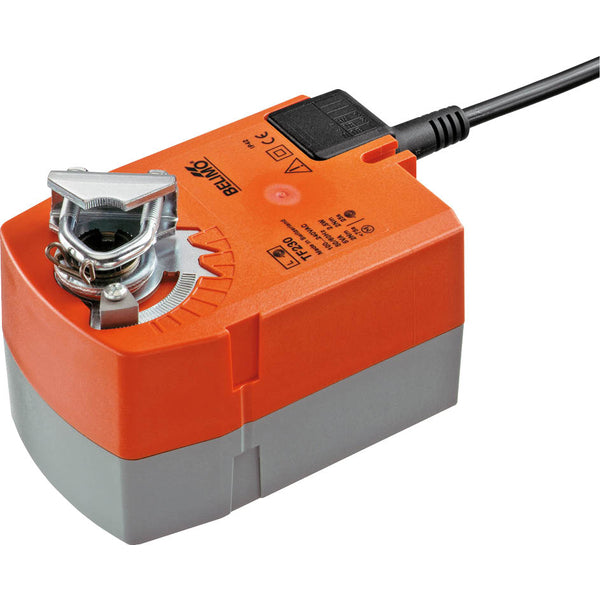

Damper-actuator fail-safe for adjusting air dampers in technical building installations

  • Air damper size up to approx. 0.5m²
  • Torque motor 2.5Nm
  • Nominal voltage AC 230V
  • Control Open/close
  • Without integrated auxiliary switch
  • Running time motor: 75s
  • Running time spring: below 25s

Delivery Lead Time: 1-2 weeks upon order confirmation
    RM594.00

    Pickup available at Anzen Business Park Warehouse

    Usually ready in 5+ days

    TF230

    Anzen Business Park Warehouse

    Pickup available, usually ready in 5+ days

    Anzen Business Park, Jalan 4/37 A, Kawasan Industri Bukit Maluri, 52100 Kuala Lumpur, Wilayah Persekutuan Kuala Lumpur
    Jalan 4/37 A, Kawasan Industri Bukit Maluri
    52100 Kuala Lumpur KUL
    Malaysia
    Voltage AC/DC AC 100...240 V
    Power consumption (running) 2.5 W
    Power consumption (holding) 1.5 W
    Power Consumption For Wire Sizing 5 VA
    Connection Supply Control Cable 1 m, 2x 0.75 mm²
    Torque 2.5 Nm
    Control type Open/close
    Direction Of Motion Motor selectable by mounting L/R
    Direction of rotation (fail-safe) Selectable by mounting L/R
    Manual override No
    Angle of rotation 95°
    Running time (motor) 75 s / 90°
    Running time (fail-safe) <25 s
    Mechanical interface Universal shaft clamp 6...12.7 mm
    Protection category IP42
    Ambient Temperature -30...50°C [-22...122°F]
