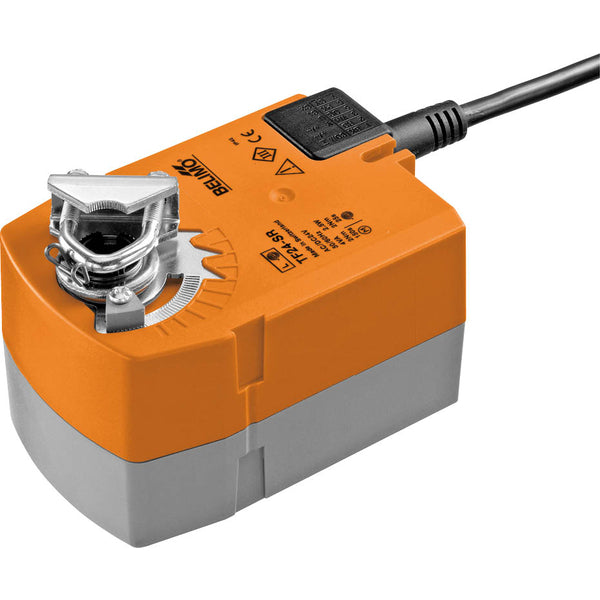

TF24-SR
TF24-SR

TF24-SR

TF24-SR

Damper-actuator fail-safe for adjusting air dampers in technical building installations

  • Air damper size up to approx. 0.5m_
  • Torque motor 2.5Nm
  • Nominal voltage AC/DC 24V-
  • Control Modulating 2...10V DC
  • Position feedback 2...10V DC
  • Running time motor: 150s
  • Running time spring: below 25s
Delivery Lead Time: 1-2 weeks upon order confirmation
    RM795.00

    Pickup available at Anzen Business Park Warehouse

    Usually ready in 5+ days

    TF24-SR

    Anzen Business Park Warehouse

    Pickup available, usually ready in 5+ days

    Anzen Business Park, Jalan 4/37 A, Kawasan Industri Bukit Maluri, 52100 Kuala Lumpur, Wilayah Persekutuan Kuala Lumpur
    Jalan 4/37 A, Kawasan Industri Bukit Maluri
    52100 Kuala Lumpur KUL
    Malaysia
    Voltage AC/DC AC/DC 24 V
    Power consumption (running) 1.3 W
    Power consumption (holding) 0.6 W
    Power Consumption For Wire Sizing 2.6 VA
    Connection Supply Control Cable 1 m, 4x 0.75 mm²
    Torque 2.5 Nm
    Control type MP-Bus
    DC 2...10 V
    DC 0.5...10 V
    Direction Of Motion Motor selectable with switch L/R
    Direction of rotation (fail-safe) Selectable by mounting L/R
    Manual override No
    Angle of rotation 95°
    Running time (motor) 150 s / 90°
    Running time motor variable 75...300 s
    Running time (fail-safe) <25 s
    Mechanical interface Universal shaft clamp 6...12.7 mm
    Protection category IP42
    Ambient Temperature -30...50°C [-22...122°F]
