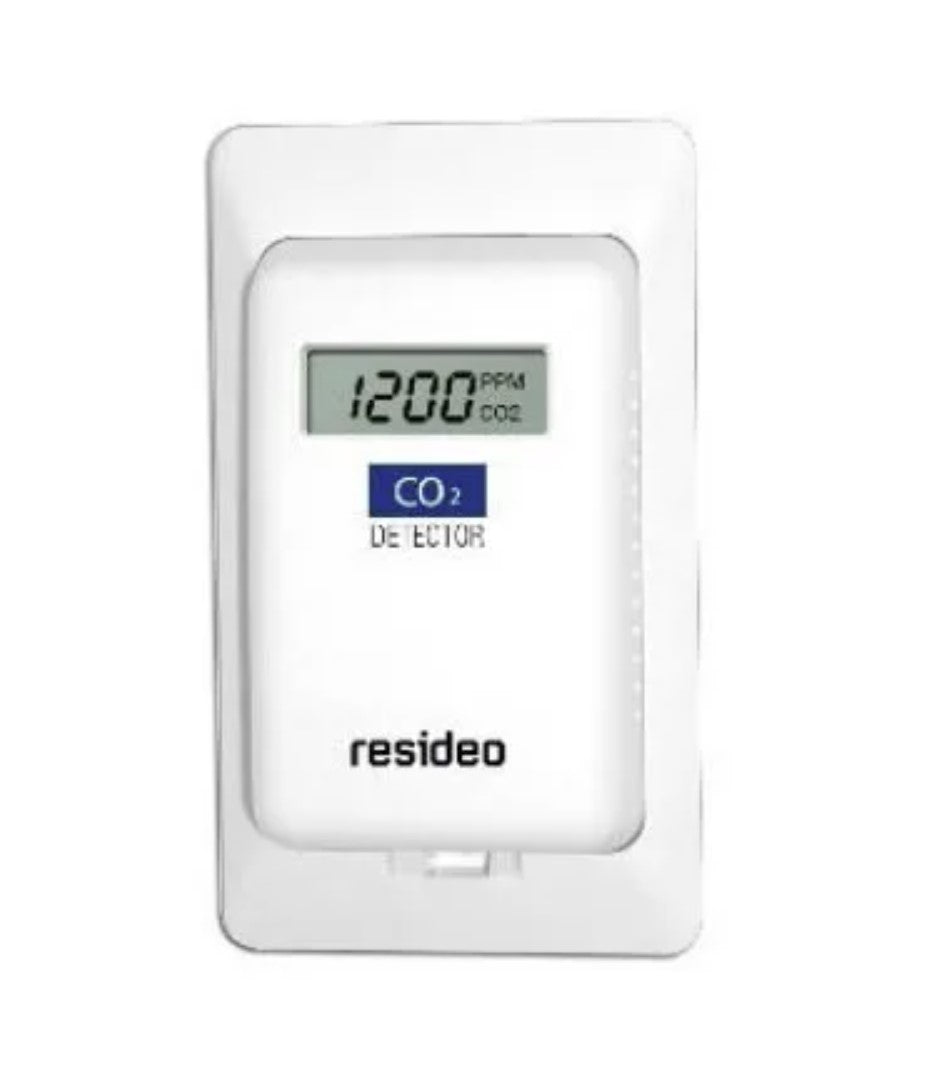

CDS2000A Series - CO2 Detector

CO2 Detector, Wall-mount type CDS2000A series is compact and easy-to-install IAQ(Indoor Air Quality) sensor, which is designed for detecting carbon dioxide in the air. This series is optimized to be used with building and house ventilation system and air conditioning system, which maintains acceptable levels of CO2 in the indoor space by controlling the amount of fresh outdoor air.

• Gas detected: Carbon Dioxide (CO2)
• Sensing method: NDIR (Non-dispersive infrared)
• Detect Range: 0 to 2000ppm
• Accuracy: ±30ppm ±5% of measured value
• Output signal: 0...10VDC (default) or 0...20mA (selectable by jumper setting)
• Coverage area: Approximate 100_
• Power supply: 24VAC / 24VDC±20%, 50/60Hz
• Power consumption: Max. 2W
• Response time: Within 120s
• Operating temperature: 0...50°C
• Operating humidity: 0~95%rh
• Housing material: Plastic(ABS)
